70w 150w Hid Spot Light g Reflector For Landscape Lighting Fixtures Sec-l-Tg102

Product Categories
Shining Electronic CO., LTD
Contact Now

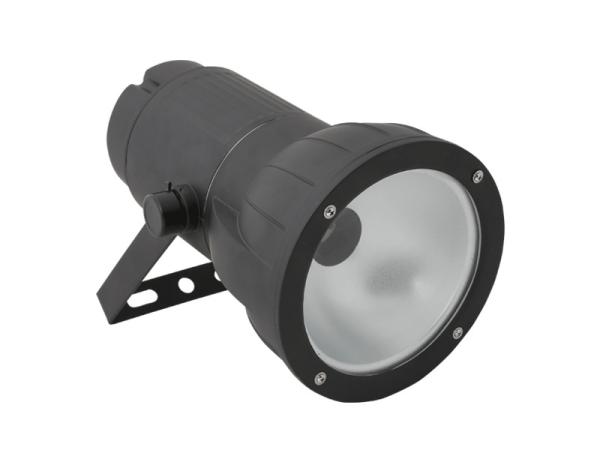

70w 150w Hid Spot Light g Reflector For Landscape Lighting Fixtures Sec-l-Tg102

Brand Name : SHINING

Model Number : SEC-L-TG102

Certification : CE,ROHS

Place of Origin : CHINA

MOQ : 100

Supply Ability : 10000

Delivery Time : 7days for samples,30days for mass production

Packaging Details : OEM package

Material : Aluminum die casting

Watt : 35W | 70W | 150W

IP rate : IP65

Color : Black | White | Grey

Reflector : Mirror | Matt

Lampholder : RX7S | G12

Contact Now

Quick Detail:

  • Model No.:SEC-L-TG102
  • Ingress Protection : IP65
  • Voltage:220-240V 50/60Hz
  • Material: High Pessure Aluminum Die-cast Body
  • Finish: Coated with epoxy powder
  • High purity anodized clear aluminium reflector
  • Thermal resistant tempered glass
  • Steel mounted bracket coated with epoxy powder
  • Watt : 35W | 70W | 150W
  • Lampholder type : RX7S | G12
  • Dimmension : 190x190x315mm

Technical information:

  • Ingress Protection : IP65
  • Voltage:220-240V 50/60Hz
  • Material: High Pessure Aluminum Die-cast Body
  • Finish: Coated with epoxy powder
  • High purity anodized clear aluminium reflector
  • Thermal resistant tempered glass
  • Steel mounted bracket coated with epoxy powder
  • Watt : 35W | 70W | 150W
  • Lampholder type : RX7S | G12
  • Dimmension : 190x190x315mm

Reflector : Mirror | Matt

Control gear : Built-in control gear

IP65 Cable gland

Drawing & Dimmension :

Photometric curve :

Fixation support :

Applications:

  • This Product is in the category of " HID outdoor spotlight" .
  • It can be used in following applications:


Court-yards

Shop windows

Billboards

Building

Landscape

Sports establishments

Specifications:

Model Watt Dimmension Lampholder Rate
SEC-E-TG102 35W ¢190*315MM G12 | RX7S IP65
SEC-E-TG102 70W ¢190*315MM G12 | RX7S IP65
SEC-E-TG102 150W ¢190*315MM G12 | RX7S IP65
　
Model Watt Voltage Lampsource Beam angle
SEC-E-TG102 35W 220-240V HID 15
SEC-E-TG102 70W 220-240V HID 15
SEC-E-TG102 150W 220-240V HID 15
