SMD LED Waterproof Landscape Lighting Fixtures IP65 2X18W SEC-L-TP103

Shining Electronic CO., LTD
Contact Now

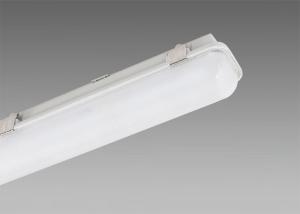

SMD LED Waterproof Landscape Lighting Fixtures IP65 2X18W SEC-L-TP103

  • 1
  • 2
  • 3

Brand Name : GPT

Model Number : SEC-L-TP103

Certification : CE RoHS

Place of Origin : China

MOQ : 200PCS

Supply Ability : 100,00pcs / Month

Delivery Time : 30 Days

Packaging Details : Standard Export Packing

Model : SEC-L-TP103

LED Source : SMD 2835

Watt : 1x9W 2x9W 1x18W 2X18W

Base : ABS

Diffuser : PC

IP rate : IP65

Contact Now

Description:

  • Economic LED waterproof fitting with high performance & lower cost.
  • Modern design with high out-put, made of polycarbonate or ABS. Stable and protected to UV radiation with high stability and mechanical resistance, especially anti-impact, IP65.
  • The body can be fixed to ceil directly be expansion screw or amounting parts supplied on luminaire or with steel bracket system,also can be hang by chains(pole)
  • The Diffuser: Made of real optical design, eliminating the LED glaring. SMD Light source achieves light one time distribution and minimize the loss of luminous flux.
  • Reflecting plate: Made of steel sheet lacquered in white powders, stabilized and UV protected by washing and phosphor-cleaning of the surface. Hanging system reflector is included on luminaire.
  • 25000 hours lifetime, warranty: 2 years

Specification:

Watt

Size(MM)

Lumen(LM)

LED chip

Clip qty

Power factor

1X9W

665x85x62

669.904

2835

6

0.5

1X18W

1268x85x62

1165.147

2835

10

0.5

2X9W

665x128x68

1313.47

2835

6

0.5

2X18W

1268x128x68

2364.586

2835

10

0.5

Advantage:

  • Use Epi-star LED chip to enable fitting with high efficiency
  • Special optical designed patented diffuser with high efficiency
  • With very competitive price
  • Easy to fasten, plastic clips or stainless steel clips both available
  • Easy and fast ceiling installation

Application:

It can be used in following applications:

Industrial Lighting, factory,underground parking garage, tunnel, subway station etc.
