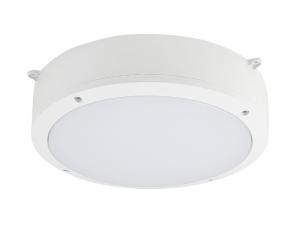

LED SMD Round Wall Landscape Light Surface Mounted SEC-L-BL100

Product Categories
Shining Electronic CO., LTD
Contact Now

LED SMD Round Wall Landscape Light Surface Mounted SEC-L-BL100

Brand Name : SHINING

Model Number : SEC-L-BL100

Certification : CE,ROHS,TUV

Place of Origin : CHINA

MOQ : 100

Delivery Time : 7days for samples,30days for mass production

Packaging Details : OEM package

Material : Aluminum die casting+ Plastic

Diffuser : Opal PC diffuser

Color : Black,White,Grey

LED : SMD

Dimmension : 3 Kinds

IP rate : IP65 | IP54 for choices

Contact Now

LED SMD Round Wall Landscape Light Surface Mounted SEC-L-BL100
Model No.: SEC-L-BL100



Quick Detail:

  • SMD LED 2835 LED CHIP
  • Aluminum die casting case
  • PC Diffuser
  • Watt : 10W/20W/30W/40W/50W/60W
  • IP Rate : IP54 | IP65 are choosed
  • Two different cable gland to be choosed
  • Input voltage : AC90-265V 50/60Hz
  • Light efficiency >80lms/W
  • Color temperature : 3000K/4500K6000K
  • Operating Temperature : -40°C ~ +60°C
  • Warranty : 3years
  • PF : > 0.9
  • Color Rendering Index : > 72
  • View angle : 120°


Description:

  • SMD LED 2835 LED CHIP
  • Aluminum die casting case
  • PC Diffuser
  • Watt : 10W/20W/30W/40W/50W/60W
  • IP Rate : IP54 | IP65 are choosed
  • Two different cable gland to be choosed
  • Input voltage : AC90-265V 50/60Hz
  • Light efficiency >80lms/W
  • Color temperature : 3000K/4500K6000K
  • Operating Temperature : -40°C ~ +60°C
  • Warranty : 3years
  • PF : > 0.9
  • Color Rendering Index : > 72
  • View angle : 120°


Applications:

  • It can be used on garden, park, courtyard, other landscape application and so on.



Specifications:

Model DIMMENSION Input voltage Power factor Input power IP
SEC-L-BL100 ¢224 78 90-264V 0.9 10 IP65
SEC-L-BL100 ¢224 78 90-264V 0.9 20 IP65
SEC-L-BL100 ¢276 86 90-264V 0.9 30 IP65
SEC-L-BL100 ¢276 86 90-264V 0.9 40 IP65
SEC-L-BL100 ¢320 89 90-264V 0.9 50 IP65
SEC-L-BL100 ¢320 89 90-264V 0.9 60 IP65
Model BEAM ANGLE LED model LED BRAND LET QTY Colr T Output Lumen
SEC-L-BL100 120 SMD LOCAL 72 3000/4500/6000 800lm
SEC-L-BL100 120 SMD LOCAL 140 3000/4500/6000 1600lm
SEC-L-BL100 120 SMD LOCAL 180 3000/4500/6000 2400lm
SEC-L-BL100 120 SMD LOCAL 240 3000/4500/6000 3200lm
SEC-L-BL100 120 SMD LOCAL 300 3000/4500/6000 4000lm
SEC-L-BL100 120 SMD LOCAL 336 3000/4500/6000 4800lm



Aluminum die casting body :




LED driver inside on back of plate :



Back side is a plastic cover :



SMD LED chips :



Simple design but with nice shape :




Competitive Advantage:

  • SMD LED chip, make the lights very smoothy.
  • Long lifetime more than 30000hours
  • IP65 or IP54 , Depend on request
  • ♦ Fixation is surface , so no need to open the fitting
