IP65 Waterproof Ledlink Lens 80w - 200w For Industrial Lighting Fixture SEC-L-FG104

Product Categories
Shining Electronic CO., LTD
Contact Now

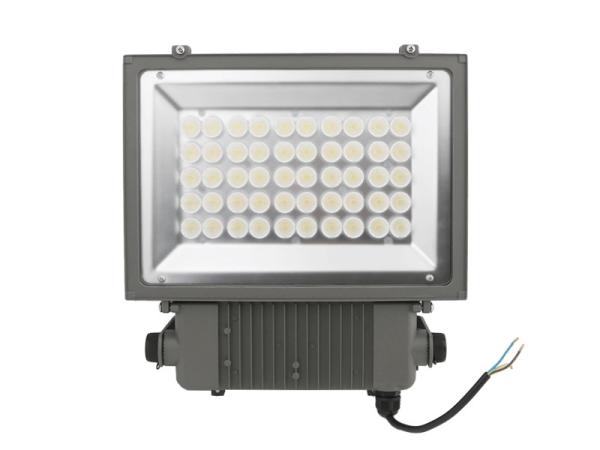

IP65 Waterproof Ledlink Lens 80w - 200w For Industrial Lighting Fixture SEC-L-FG104

Brand Name : GPT

Model Number : SEC-L-FG104

Certification : CE

Place of Origin : CHINA

MOQ : 100

Supply Ability : 10000

Delivery Time : T/T OR L/C

Packaging Details : STANDARD EXPORT PACKING/OEM

Material : Aluminum die casting

Viewing Angle : 120°

Watt : 80W/100W/160W/180W/200W

IP grade : IP65

Warranty : 3 Years

LED brand : CREE / Bridgelux

Contact Now

IP65 Waterproof Ledlink Lens 80w - 200w For Industrial Lighting Fixture SEC-L-FG104
Model No.: SEC-L-FG104

Quick Detail:

  • SMD LED Flood light Ledlink lens
  • Two different sizes
  • Made by Aluminum die casting body
  • IP grade : IP65
  • Input voltage : AC100-240V 50/60Hz
  • Color temeprature : -40°C ~ +60°C
  • Warranty: 3years
  • Power Factor : >0.9
  • Viewing Angle : 120°
  • Light Efficiency : >90 lm/W
  • LED brand : CREE / Bridgelux

Description:

  • SMD LED Flood light Ledlink lens
  • Two different sizes
  • Made by Aluminum die casting body
  • IP grade : IP65
  • Input voltage : AC100-240V 50/60Hz
  • Color temeprature : -40°C ~ +60°C
  • Warranty: 3years
  • Power Factor : >0.9
  • Viewing Angle : 120°
  • Light Efficiency : >90 lm/W
  • LED brand : CREE / Bridgelux

Applications:

  • It can be used on garden, park, courtyard, industrial park , advertising board and so on.

Specifications:

Model Power (W) Voltage (V) Luminous Flux (lm) Color Temperature (K) CRI Beam angle (°) Lifetime (H) LED chip
SEC-L-FG104 80 100-240 7200 3000|4500|6000 72 120 50000 SMD
SEC-L-FG104 100 100-240 9000 3000|4500|6000 72 120 50000 SMD
SEC-L-FG104 160 100-240 14400 3000|4500|6000 72 120 50000 SMD
SEC-L-FG104 180 100-240 16200 3000|4500|6000 72 120 50000 SMD
SEC-L-FG104 200 100-240 18000 3000|4500|6000 72 120 50000 SMD
Model Power (W) Dimension (mm) IP rating Number of LED Power Factor Wattages (W) Light efficiency (lm/w) LED brand
SEC-L-FG104 80 353*444*66 65 40 >0.9 80 90 CREE|BRIDGELUX
SEC-L-FG104 100 353*444*66 65 40 >0.9 100 90 CREE|BRIDGELUX
SEC-L-FG104 160 420*515*87 65 80 >0.9 160 90 CREE|BRIDGELUX
SEC-L-FG104 180 420*515*87 65 80 >0.9 180 90 CREE|BRIDGELUX
SEC-L-FG104 200 420*515*87 65 112 >0.9 200 90 CREE|BRIDGELUX

Familiar aluminum die casting body :

Lighting body is much thinner than before :

LED driver built-in :

Adjustable light angle :

Support is very strong :

Competitive Advantage:

  • The light body is design as the star model traditional lighting
  • Thickness is less than before
  • LED ledlink lens keep very stable quality and long lifetime
  • CREE | Bridgelux chip only
  • SMD LED chip
