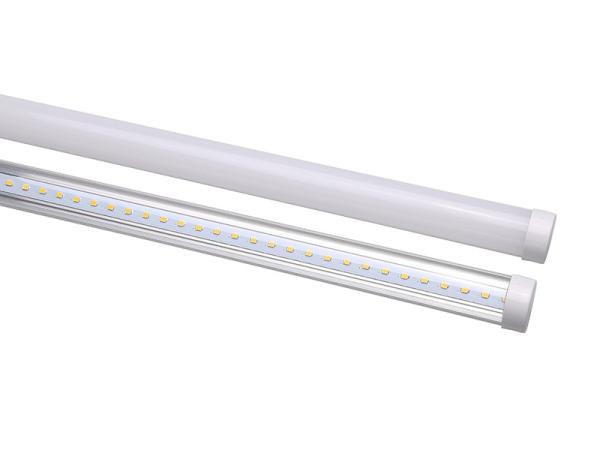

Warm / Natural / Pure White T8 Waterproof Led Tube IP65 10Watt - 24Watt

  • 1
  • 2
  • 3

Brand Name : SHINING

Model Number : SEC-L-TB109

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 1000pcs

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 15days

Packaging Details : ctns

Model : SEC-L-TB109

Wattage : 10w|18w|24w

Led chip : SMD2835

CCT : warm white/Natural white/Pure white

RA : >80

Material : PC

Contact Now

Warm / Natural / Pure White T8 Waterproof Led Tube 10Watt - 24Watt



Quick Detail:

Wattage:10W/18W/24W
Led type:SMD2835
Power supply:With Internal Isolated Power
Input Voltage:AC90-265V/50-60HZ
Material:PC
Beam Angle:140°
RA>80
PF>0.9
Life Time:30000H
CCT:warm white/Natural white/Pure white
Model Number :SEC-L-TB109





Description:


1.With internal Non-isolated power supply.
2.Use the most mature international well-known LED SMD2835 as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay.
3.Use the high quality aluminum PCB for LED’s better heat dissipation.
4.High-grade PC cover with nice light transmittance (>95%), Transparent PC cover and frosted PC cover are available.
5.140º beam angle makes the lighting effect better.
6.Ambient temperature:-20℃~40℃, surface temperature: 42℃~45℃.
7.No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no frequency flash, instant startup, no hurting eyes.



Product Spec:


Standard Length

Dimension(mm)

A

B

C

D

0.6M

600

250

250

Φ26

1.2M

1200

250

250

Φ26

1.5M

1500

250

250

Φ26
















Installation:

A:


B:




Packing Info:




Model

NW/GW (PC)

Carton Size

Q'ty/CTN

GW./ CTN

T8-10W

0.17kg

680*260*220MM

25PCS/Carton

4.8kg

T8-18W

0.34kg

1280*260*220MM

25PCS/Carton

9.2kg

T8-24W

0.49kg

1580*260*220MM

25PCS/Carton

12.5kg



Specifications:

Model SEC-L-TB109
Color Temperature (K) 2500-6500
LED chip specification 2835
Power (W) Voltage (V) Luminous Flux (lm) CRI Beam angle (°) Dimension (mm) Number of LED Power Factor Light efficiency (lm/w)
10 AC95-265 950-1050 >80 140 590*26 60 0.9 110
18 AC95-265 1700-1900 >80 140 1198*26 120 0.9 110
24 AC95-265 2000-2400 >80 140 1498*26 150 0.9 110


Product Structure:

A:

B:

This Product can be used :
Outdoor lighting, Refrigerator or freezer show lighting, Cold storage lighting, Other humid environments lighting, etc.
