DECMHL145003

Place of Origin : CHINA

Brand Name : GPT

Certification : CE ROHS

Model Number : DECMHL145003

MOQ : 2000

Packaging Details : STANDARD EX PACKING / OEM

Delivery Time : 20 DAYS

Payment Terms : T/T OR L/C

Supply Ability : 100,000 PCS/MONTH

Contact Now

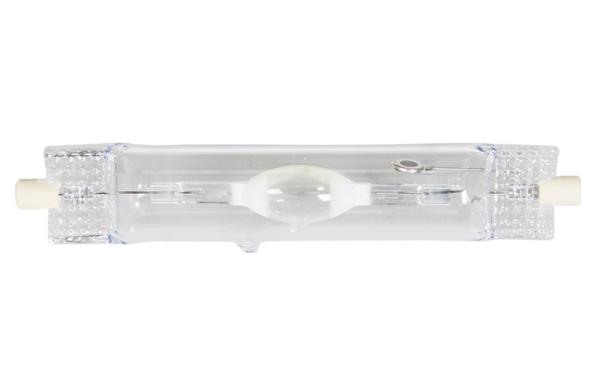

Double-ended, compact, high-efficiency discharge lamp with a stable color over lifetime and a crisp, sparkling light, 70W / 100W / 150W, 3000K / 4200K, Rx7S, 12,000 hours LONG LIFE

Quick Detail:

Double-ended, compact, high-efficiency discharge lamp with a stable color over lifetime and a crisp, sparkling light, 35W / 70W / 150W, 3000K / 4200K, Rx7S
70W / 100W / 150W, 3000K / 4200K
12,000 hours LONG LIFE
Choice of color temperature: Warm White and Nature White
Lower operating costs and improved light quality compared with standard quartz metal-halide lamps
Allows small-size luminaires designs that give high beam intensities
Burning position horizontal +/- 45.
Stable color impression over lifetime
High lamp efficiency results in low operating costs and heat generation
Lower operating costs and improved light quality
Longer life compared with halogen and metal-halide lamps
Relatively low heat output enhances comfort for shoppers and staff
UV-Block for reduced fading risks
Recommend use electronic ballast, it has energy-efficiency with long lifetime and strobe-free
Control gear must include high current protection (IEC61167)
If voltage often exceeds 3% of rated voltage, must use other grades control gear.
Use only in enclosed luminaire.
Model Number :DECMHL145003

Description:

Double-ended, compact, high-efficiency discharge lamp with a stable color over lifetime and a crisp, sparkling light, 35W / 70W / 150W, 3000K / 4200K, Rx7S

Features:

Choice of color temperature: Warm White and Nature White
Lower operating costs and improved light quality compared with standard quartz metal-halide lamps
Allows small-size luminaires designs that give high beam intensities
Burning position horizontal +/- 45.

Benefits:

Stable color impression over lifetime
High lamp efficiency results in low operating costs and heat generation
Lower operating costs and improved light quality
Longer life compared with halogen and metal-halide lamps
Relatively low heat output enhances comfort for shoppers and staff
UV-Block for reduced fading risks

System:

Recommend use electronic ballast, it has energy-efficiency with long lifetime and strobe-free
Control gear must include high current protection (IEC61167)
If voltage often exceeds 3% of rated voltage, must use other grades control gear.
Use only in enclosed luminaire.

Specifications:

Lamp Wattage (W)	Input Voltage (V)	Current (A)	Lumen (Lm)	CRI	Color Temperature (K)	Lifetime (hours)	Base	Shell
70W	90	0.98	5800	3000	65	8000	RX7S	Clear
	90	0.98	5800	4000	65	8000	RX7S	Clear
	90	0.98	6400	5000	80	8000	RX7S	Clear
	90	0.98	5400	6000	80	8000	RX7S	Clear
100W	100	1.1	8800	3000	65	8000	RX7S	Clear
	100	1.1	8800	4000	65	8000	RX7S	Clear
	100	1.1	8000	5000	80	8000	RX7S	Clear
	100	1.1	8000	6000	80	8000	RX7S	Clear
150W	95	1.8	12500	4000	65	8000	RX7S	Clear
	95	1.8	11500	5000	80	8000	RX7S	Clear
	95	1.8	11500	6000	80	8000	RX7S	Clear
	95	1.8	11500	3000	65	8000	RX7S	Clear
70W	90	0.98	5800	3000	65	8000	RX7S	Frosted
	90	0.98	5800	4000	65	8000	RX7S	Frosted
	90	0.98	6400	5000	80	8000	RX7S	Frosted
	90	0.98	5400	6000	80	8000	RX7S	Frosted
100W	100	1.1	8800	3000	65	8000	RX7S	Frosted
	100	1.1	8800	4000	65	8000	RX7S	Frosted
	100	1.1	8000	5000	80	8000	RX7S	Frosted
	100	1.1	8000	6000	80	8000	RX7S	Frosted
150W	95	1.8	12500	4000	65	8000	RX7S	Frosted
	95	1.8	11500	5000	80	8000	RX7S	Frosted
	95	1.8	11500	6000	80	8000	RX7S	Frosted
	95	1.8	11500	3000	65	8000	RX7S	Frosted

Size Diagram:

Size Diagram

Lamp Type	A (mm)	B(mm)
35W	118	57
70W	118	57
150W	135	66

Applications:

This Product is in the category of "HID Lamps" or "Double-ended Ceramic Metal Halide Lamp".
Suitable for shops and shop windows, offices and public buildings
Decorative outdoor: floodlighting of facades, statues and monuments
It is also suitable for shops, offices and public areas where it is untraditional lighting applications.
It can be used in following applications:
Store Lighting,
Office Lighting,
Landscape Lighting,
Industrial Lighting,
Hotel Lighting,
Supermarkets Lighting,
Display Lighting,
Road Lighting,
Garden Lighting
