Place of Origin : CHINA
Brand Name : GPT
Certification : CE, TUV
Model Number : LSA103016
MOQ : 100
Packaging Details : STANDARD EXPORT PACKING OR OEM
Delivery Time : 5~7days for samples,25~30days for order production
Payment Terms : T/T OR L/C
Supply Ability : 30000PCS PER MONTH
Quick Detail:
Description:
Applications:
Commercial Lighting,
Hotel Lighting,
Display Lighting
Specifications:
Data sheet |
Watt |
Dimmension |
Cut out |
30W |
235x136x146mm |
220x132mm |
|
45W |
235x146x98mm |
220x132mm |
Performance parameter
|
lamp |
Warm white |
Natural white |
Cool ahite |
Lumen(lm) |
1600lm |
1720lm |
1850lm |
|
Color temperature(k) |
3000k |
4200k |
6500k |
|
CRI |
>70 |
|||
Type of LED |
COB LED |
|||
Beam angle |
99º |
|||
Decay rate(%) |
Less than 3%within 1000 working hours |
|||
Total power(w) |
31-34W |
|||
Lifespan(Hrs) |
≧30000Hrs |
|||
High voltage testing |
1750Vac/lmin |
|||
LED Parameter
|
Lighting efficiency
|
100LM/W |
||
Chip quantity |
144PCS |
|||
Series-parallel way |
12S12P |
|||
voltage |
37-39VDC |
|||
current |
850mA |
|||
Driver parameter |
Input parameter |
100~240VAC,50/60Hz |
||
Power factor |
0.9 |
|||
Output parameter |
24-44VDC,850mA |
|||
Structure parameter
|
Material |
Cast-Aluminium |
||
Dimension |
235*146*139mm |
|||
Cut-out |
220*132mm |
|||
Protection class |
Calss 1 |
|||
IP |
IP20 |
|||
Environment parameter |
Operating temperature |
-25℃~50℃,10%~90% R.H. |
||
Storage temperature |
-30℃~85℃,0%~95% R.H. |
Competitive Advantage:
![]() |

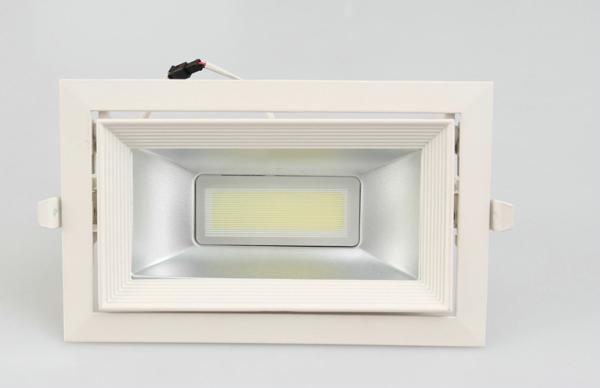

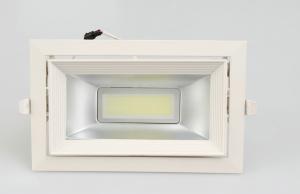

30W/45W LED SPOTLIGHTS LSA103016 FOR DISPLAY LIGHTING Images |
