Fluorescent Lighting Control Gear , 32w Dimmable Electronic Ballast

Fluorescent Lighting Control Gear , 32w Dimmable Electronic Ballast

Dimmable Electronic Ballast For Compact Fluorescent Non-Integrated Lamps (PL), 1x26W, 1x32W, 1x36W, 1x42W, 2x26W, 2x32W,

Quick Detail:

• Electronic ballast for fluorescent lamps
• Optional: 1x26W, 1x32W, 1x36W, 1x42W, 2x26W, 2x32W, 2x36W, 2x42W.
• Approved by EN 61347-1, EN 61347-2-3, EN 60929, EN 61547, EN 55015, EN 61000-3-2, EN 61000-3-3
• According to certifications: CE, KEMA
• Low power losses
• Permitted testing withstanding voltage value 1500V/min
• Lamp open-circuit, Cathodes breaking, Lamp end life protection
• Intelligent computer module control.
• 40,000h long Life time
• Model Number:FEB152002

Description:

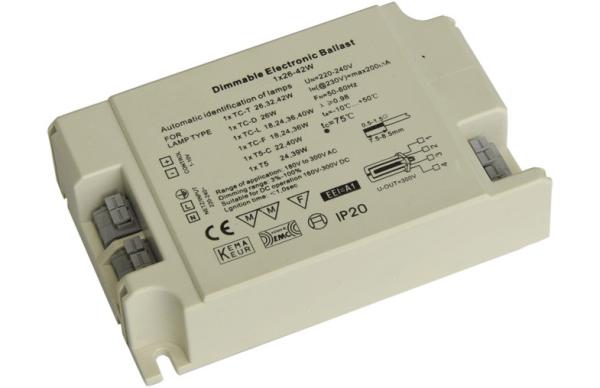

Dimmable Electronic ballast for compact fluorescent non-integrated lamps (PL).

Features:

• Input Voltage: 220~240, 50/60Hz
• Dimming Range: 3%~100%
• Power factor: ≥0.98
• Approved by EN 61347-1, EN 61347-2-3, EN 60929, EN 61547, EN 55015, EN 61000-3-2, EN 61000-3-3
• According to certifications: CE, KEMA
• Low power losses
• Permitted testing withstanding voltage value 1500V/min
• Lamp open-circuit, Cathodes breaking, Lamp end life protection
• Intelligent computer module control.
• 40,000h long Life time

Specifications:

Competitive Advantage:

• Good performance with lower price.
• Comparing to MAGNETIC ballast, ELECTRONIC ballasts are energy-saving, more reliable, and no starter needed.
• High Power factor, up to 98%.
• Long life time, up to 40,000 hours.
• Dimmable

Size Diagram:

Connection Diagram:

Connection Diagram for All Electronic Fluorescent Ballast:

Applications:

• This Product is in the category of "Electronic Control Gear" or "Fluorescent Electronic Ballasts".
• It can be used in following applications:
  Store Lighting,
  Office Lighting,
  Control Gear,
  Industrial Lighting,
  Supermarkets Lighting,
  Emergency Lighting,
  Display Lighting

lamp control gear

remote light control
