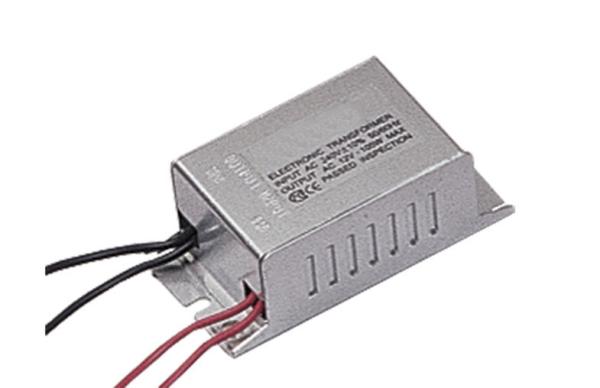

Halogen Electronic Transformers, 20~60W / 35~105W / 50~150W

Place of Origin : CHINA

Brand Name : GPT

Certification : CE ROHS

Model Number : HET011018

MOQ : 2000

Packaging Details : STANDARD EX PACKING / OEM

Delivery Time : 20 DAYS

Payment Terms : T/T OR L/C

Supply Ability : 100,000 PCS/MONTH

Contact Now

Quick Detail:

  • Halogen Electronic Transformers
  • Optional: 20~60W / 35~105W / 50~150W.
  • For low-voltage halogen lamps.
  • Overload, overheat, open-circuit, short-circuit protection
  • Small size, high efficiency..
  • 8,000h long life time
  • Model Number:HET011018

Description:

Electronic Transformers for Halogen Lamps.

Features:

  • Overload, overheat, open-circuit, short-circuit protection
  • Small size, high efficiency..
  • 8,000h long life time

Specifications:

Wattage (W)

Input Voltage

(V, Hz)

Output Voltage

(V, Hz)

Max Current(A)

Power Factor λ

Ta

(℃)

Tc

(℃)

20~60W

11.6

5.2

≥0.95

-10~40

60

20~60

35~105W

11.6

9.1

≥0.95

-10~40

60

35~105

50~150W

11.6

12.9

≥0.95

-10~40

60

50~150

Competitive Advantage:

  • Overload, overheat, open-circuit, short-circuit protection
  • Small size, high efficiency..
  • 8,000h long life time

Size Diagram:

Size Diagram

Wattage (W)

L

(mm)

W

(mm)

H

(mm)

Weight

(g)

20~60W

81

35

30

100

35~105W

85

43

30

100

50~150W

95

47

37

100

Connection Diagram:

Connection Diagram For Non-Dimmable Transformers

Connection Diagram For Dimmable Transformers

Applications:

  • This Product is in the category of "Electronic Control Gear" or "Halogen Electronic Transformers"
  • Suitable for living room lighting, showcase, commercial lighting, counters, shelf, cabinets, background lighting, etc.
  • It can be used in following applications:
    Furniture Lighting,
    Store Lighting,
    Office Lighting,
    Control Gear,
    Home Lighting,
    Hotel Lighting,
    Supermarkets Lighting,
    Display Lighting
