LED FLOOD LIGHT LF164002 48W IP65 FOR DISPLAY LIGHTING

Product Categories
Shining Electronic CO., LTD
Contact Now

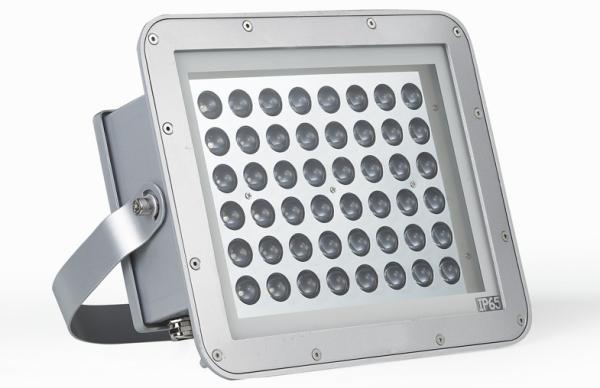

LED FLOOD LIGHT LF164002 48W IP65 FOR DISPLAY LIGHTING

Place of Origin : CHINA

Brand Name : GPT

Certification : ETL, CE, ROHS

Model Number : LF164002

MOQ : 100 PCS

Packaging Details : 550x440x400cm 4PCS/CTN

Delivery Time : 35 DAYS

Payment Terms : T/T OR L/C

Supply Ability : 10,000 PCS/MONTH

Contact Now

Quick Detail:

  • LED FLOOD LIGHT 48W IP65
  • High-pressure die-cast aluminum materials
  • High strength toughened glass
  • IP65
  • Model Number :LF164002





Description:

  • High-pressure die-cast aluminum materials used for main part, which is resistible to wallop and corrosion
  • High strength toughened glass, using special treatment with better ultraviolet resistance.
  • Flicker free ,Strobe-free and soft light
  • Energy-saving, save up to 80% compared with traditional lamps
  • Multiple angle lens available
  • Excellent electric design to ensure long lifetime(up to 50,000 hours)
  • Optional colors: PW/WW/RED/GREEN/BLUE/AMDER/RGB/AWB
  • IP level:IP65


Applications:

  • It can be used in following applications:
  • Building surface, garden lighting, display lighting, stadium lighting etc.




Specifications:

OPTICAL SPEC

LED Spec&Quantity

48x1W LED

LED Chip

Bridgelux

LED Color Temperature

3000K-3500K/4000K-4500K/5500K-6500K/OVER7000K

LED Efficiency

110-130LM/W

Lamp Efficiency

>85LM/W

Initial Delivered Flux Tj=25

4250LM

Normal Luminous Flux Tj=60

3950LM

Illuminance Scope at 6M

112lux 7mx3.2m

Illuminance Scope at 8M

66lux 9mx4.2m

Illuminance Scope at 10M

41lux 11.5mx5.3m

Illuminance Scope at 12M

28lux 13.8mx6.4m

Color Rendering Index

>75

Beam Angle

120ox60o,15o/30o/45o/60oRound lens

ELECTRICAL SPEC

Input voltage Frequency

AC100-277V 50/60Hz

Power Factor

>0.9

Input Power

0.27A(220V)

Total Power Consumption

55W

Temperature Spec

Shell Temperature(Ta=30)

48oC

Junction Temperature(Ta=30)

60oC

Shell Temperature Rise(Ta=30)

18oC

Junction Temperature Rise(Ta=30)

30oC

Other Spec

Operating Temperature&Humidity

-20oC～45oC/10～90RH

Storage

-40oC～60oC

Dimension(mm)

L320xW196xH270mm

Net Weight

5.2±0.2kg

IP Rating

IP65

Lifespan

50,000h


Competitive Advantage:

  • Super-long lifetime, Humane structure design makes the installation and maintenance easy.
  • Energy-saving reduces the cost.
  • Soft light to build the comfortable atmosphere
