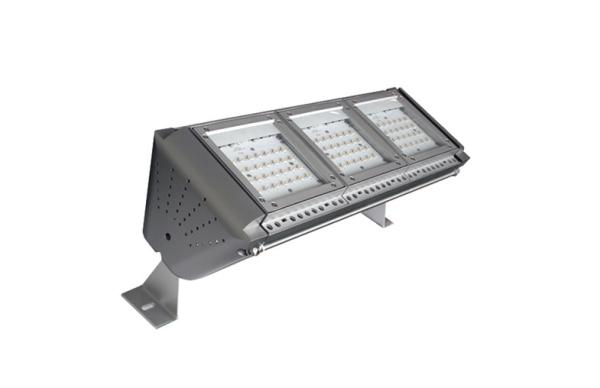

LED Tunnel Light LTL164003 84W IP65 for road lighting

Model

LTL164003

Input Voltage:

100-277V AC

Frequency:

50~60Hz

Power Factor

＞0.95

THD

＜20%

Energy Efficiency

＞90%

Lamp Working Voltage:

24V DC

LED Qty:

84×1W

Power:

105W

LED Luminous Efficiency:

≥100 lm/W

LED Initial Luminous Flux:

8500 lm (TJ=25℃)

LED Normal Luminous Flux:

7400 lm(TJ=60℃,Ta=25℃)

Light Efficiency (%):

＞90%

Illumination and Effective illuminated area

(Height=6m) 58 Lx 21×9.5

Color Temperature:

Warm White:3,000~3,500K; Neutral White:4,000~4,500K; Pure White:5,500~6,500K; Cool White:7000K and above

CRI:

Ra＞75

Light Distribution Curve:

Type I(Symmetrical)OR Type II(Unsymmetrical)/ Rectangular spot.

Max. Light intensity angle:

Longitudinal axis:65°: Horizontal axis: 0°(Type I)

Beam Angle:

130°×80°

Junction Temperature(TJ):

＜65 ℃ ± 1 0% ( Ta= 25 ℃)

System Thermal Resistance (RJA):

0.45℃ / W

Operating Temperature:

- 20 ℃ ~ 40 ℃

Operating Humidity:

10 % ~ 90 % RH

Storage Temperature:

-20 ℃ ~ 45 ℃

Life Span

50,000 Hours

Lamp Material:

Aluminum Alloy + Tempered Glass

Protection Level:

IP65

Lamp Size:

620× 209×252 mm

Net Weight:

8kg

Packing Size & Gloss Weight:

720×320×280mm(1pc) 9 kg
