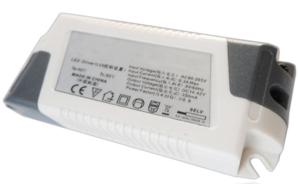

Constant Current Lighting Control Gear LED Driver 15W 350MA / 700MA

Place of Origin : CHINA

Brand Name : GPT

Certification : CE ROHS

Model Number : CCLDB001037

MOQ : 300PCS

Packaging Details : Standard export packing

Delivery Time : 25 Days

Payment Terms : T/T or L/C

Supply Ability : 100,000PCS/Month

Contact Now

Constant Current Lighting Control Gear LED Driver 15W 350MA / 700MA

Quick Detail:



Constant Current LED Driver 15W. 90-265V,300MA/700MA



Description:



  • Constant Current LED Driver 15W
  • Input Voltage: 90-265V
  • Input Frequency: 50/60Hz
  • Max output:15W


Product Features:

  • Universal AC input/full range
  • Constant current driver
  • Independent design
  • Captured terminal screws
  • Safe no-load operation
  • Overload & Short circuiting protection
  • Overheating protection
  • Simple installation
  • SELV equivalent
  • Protection class Ⅱ
  • RI suppression is accordance with the new EMC
  • Standard (EN55015:2006+A1:2007+A2:2009)


Specification:

Max Output (W)

Output Voltage (V)

Output Current (mA±3%)

Power Factor (λ)

Full load efficiency (%)

Ambient Temperature (℃)

Max Case Temperature tc(℃)

15

14-42

350

≥0.9

≥80

(﹣20..﹢50)

80

15

7-21

700

≥0.9

≥80

(﹣20..﹢50)

80

Wiring Diagram: A



Size: L88 X W38 X H22






Standards:

  • EN 61347-1
  • EN 61347-2-13
  • EN 55015
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61547


Competitive Advantage:

  • Constant current driver
  • Independent design
  • Simple installation


Application:

This Product is in the category of LED Drivers, Constant Current LED Drivers.
It can be used in following applications:

  • Furniture Lighting,
  • Store Lighting,
  • Office Lighting,
  • Control Gear,
  • Home Lighting,
  • Hotel Lighting,
  • Supermarkets Lighting,
  • Display Lighting

Tag:

Control Gear, LED Drivers, Constant Current LED Drivers
